18,000 Btu Klimaire 22 SEER2 230V Wall-mounted Ductless Mini-split Air Conditioner Heat Pump
Klimaire U PRO Series
U PRO is the newly designed 4th generation KLIMAIRE Heat pump Series consisting of a wall mounted indoor unit and Smart DC Inverter condenser with advanced comfort and energy saving features with ratings up to 23 SEER2. Factory Installed 6-in-1 healthy air filtration system delivers healthier indoor air quality.
This quite highly energy efficient system is the perfect solution for many types of spaces without ductwork for comfortable cooling and heating needs all year round. Its stylish design and matt finish (9K-24K) blends perfectly in any décor, ease of installation, affordability and superior quality make it the homeowners preferred choice.
KIWU18H2-1T | INDOOR UNIT
Installation of Klimaire U-PRO is easier and faster. Packed with the indoor unit the cardboard template helps accurate drilling and mounting.
Smart Control
Factory installed module improves functionality with SMART LIFE APP. You can remotely Manage your system via Wi-Fi from anywhere and at any time. The system can be controlled with amazon Alexa or Google assistant.
WIFI Connection
Self-cleaning and Sterilization
Built-in feature will prevent growth of harmful micro-organisms by cleaning the evaporator of the indoor unit where accumulation of dust and bacteria could be a major issue. This function keeps the unit fresh and clean for the next operation.
133˚F High Temperature Self-cleaning & Sterilization
Healthy Air Filtration System
A set of 6 different functional filters help to deliver exceptional indoor air Quality (IAQ)
COMFORT
- DRY Mode – Independent dehumidification to reduce the humidity of the air to make ambient of a room more comfortable.

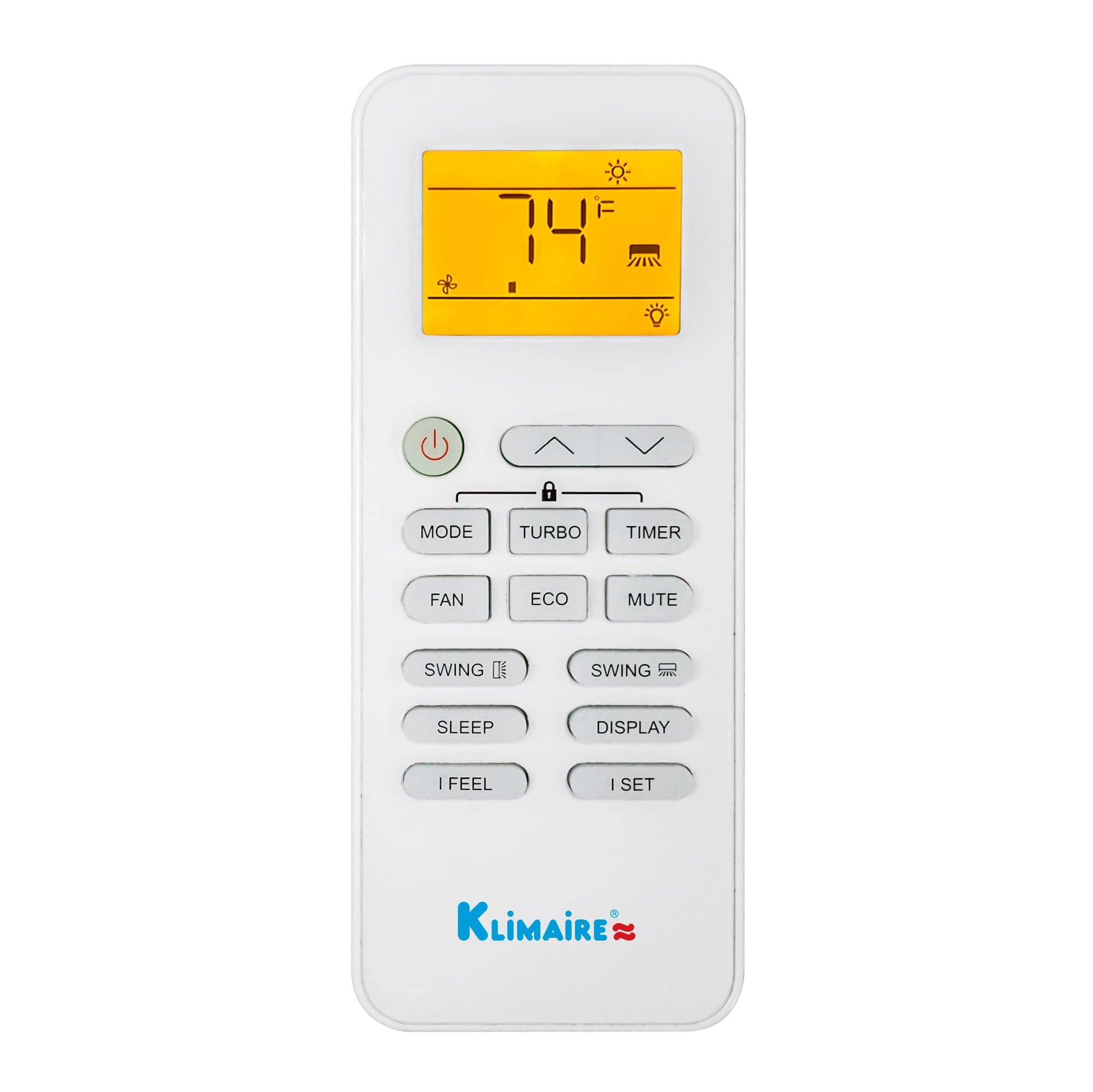

- I FEEL – This function enables the remote control to measure the temperature at its location and send signals to the indoor unit to optimize the temperature around its position. You keep the remote control close to you, it is as if the air conditioner were following you.
- SLEEP mode – It can maintain the temperature at a lower setting at night during the sleeping hours.
- Auto clean – This function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality.
- 4 way Air Flow – Up-Down-Left-Right auto swing motion – moves the air in all directions .
- AUTO-RESTART – After a power failure the system will automatically re-start in the same operating mode as before the outage when the power is restored.
- Smart Air Flow – Powerful and silent air flow with larger louver makes wind blow farther and wider to cover every spot of the room.
CONVENIENCE
- 24h Timer – Allows the user to set the time when the AC will turn ON or OFF and the preferred settings.
- TURBO Mode – With this function the AC will operate at the highest fan speed and speed to make the room comfortable quickly.
- AUTO Mode – The operating mode will be set automatically according to the room temperature.
- EMERGENCY Button – Allows to manually operate the AC at the preset ambient conditions when the remote is missing.
PERFORMANCE
- HIGH AMBIENT COOLING – Strong cooling capacity in high ambient temperatures of up to 122ºF
- LOW AMBIENT COOLING – The unit can operate in cooling mode during the winter down to 5º F to cool an inner room.
- LOW AMBIENT HEATING – Provides heating when the outside temperature is as low as-13º F.
- SELF-TROUBLESHOOTING – Provides faster and accurate service diagnostics.
ENERGY SAVING
- AWAY HOM E-- (AH) will automatically start the heating mode when the room temperature is lower than 46º F
- ECO MODE--In this mode the AC will automatically set the operation to save energy.
KOIU18H2-1 | Outdoor Unit
Golden fin
Anticorrosion coating to protect the outdoor coil from corrosive elements to maintain higher heat transfer for a longer time.
Refrigerant leakage detection
When the outdoor unit detects a refrigerant leakage condition the indoor unit will sound an alarm.
Installation
WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- Remote control with wall bracket holder
- User’s Manual
- Installation Manual
- Wi-Fi Manual
- Service Manual
MANUFACTURER WARRANTY
- 5-year parts limited warranty
- 7-year compressor limited warranty
Find Certified Installers Near You
Technical Specifications
Below are the detailed specifications for this model.
| Specification |
Details |
| Application Area Sqft |
550 SqFt |
| Certifications |
AHRI Performance Certified 210/240 / ETL |
| Colors New |
White |
| Cop2 |
3.2 |
| Zone Type |
1 |
| Zone 1 Unit Type |
Wall Mounted |
| Zone 1 Capacity One |
18#44;000 BTU/h |
| Voltage |
208/230 Volt |
| Unit Type |
Ductless Mini Split Systems Wall Mount |
| Technology |
Inverter |
| System Weight |
131.2 lbs |
| System Heating Capacity Btu |
18,200 |
| System Cooling Capacity Btu |
18,000 |
| Sub System Type |
Ductless Mini Splits |
| Shipping Time |
24 to 72 hours |
| Seer2 Filter |
22+ |
| Seer2 |
22 |
| Room Number |
1 Room |
| Refrigerant |
R-410A |
| Outdoor Model Number |
KOIU18H2-1 |
| Nominal Heating Capacity Btu |
18,000 |
| Nominal Cooling Capacity Btu |
18,000 |
| Nominal Capacity Btu |
18,000 |
| Must Ship Freight |
Yes |
| Mounting Type |
Wall Mounted |
| Model Number |
KOIU18H2-1 + KIWU18H2-1T |
| Minisplit Fancoil Style |
Wall Mounted |
| Min Outdoor Temp Heating |
-13 |
| Maximum Fuse Size |
20 amps |
| Max Min Heating Capacity |
11,900/18,000 Btu/h |
| Manufacturer Limited Warranty |
5 Year Parts 7 Years Compressor |
| Indoor Model Number |
KIWU18H2-1T |
| Hspf2 |
8.8 |
| Feature Two |
PRICE Match Plus |
| Feature Three |
5 Year Parts 7 Years Compressor |
| Feature One |
60-Day Returns |
| Feature Four |
Free Shipping |
| Electrical |
208-230 V; 1 Phase; 60 Hz |
| Eer2 |
12.5 |
| Application |
Heat Pump / Heating & Cooling |
Customer Reviews and Experiences
Frequently Asked Questions
We've compiled the most common questions about this heat pump system based on homeowner inquiries and installer feedback.
