2-Zone Klimaire 23.5 SEER2 Multi Split Wall Mount Floor-ceiling Air Conditioner Heat Pump System 18+18

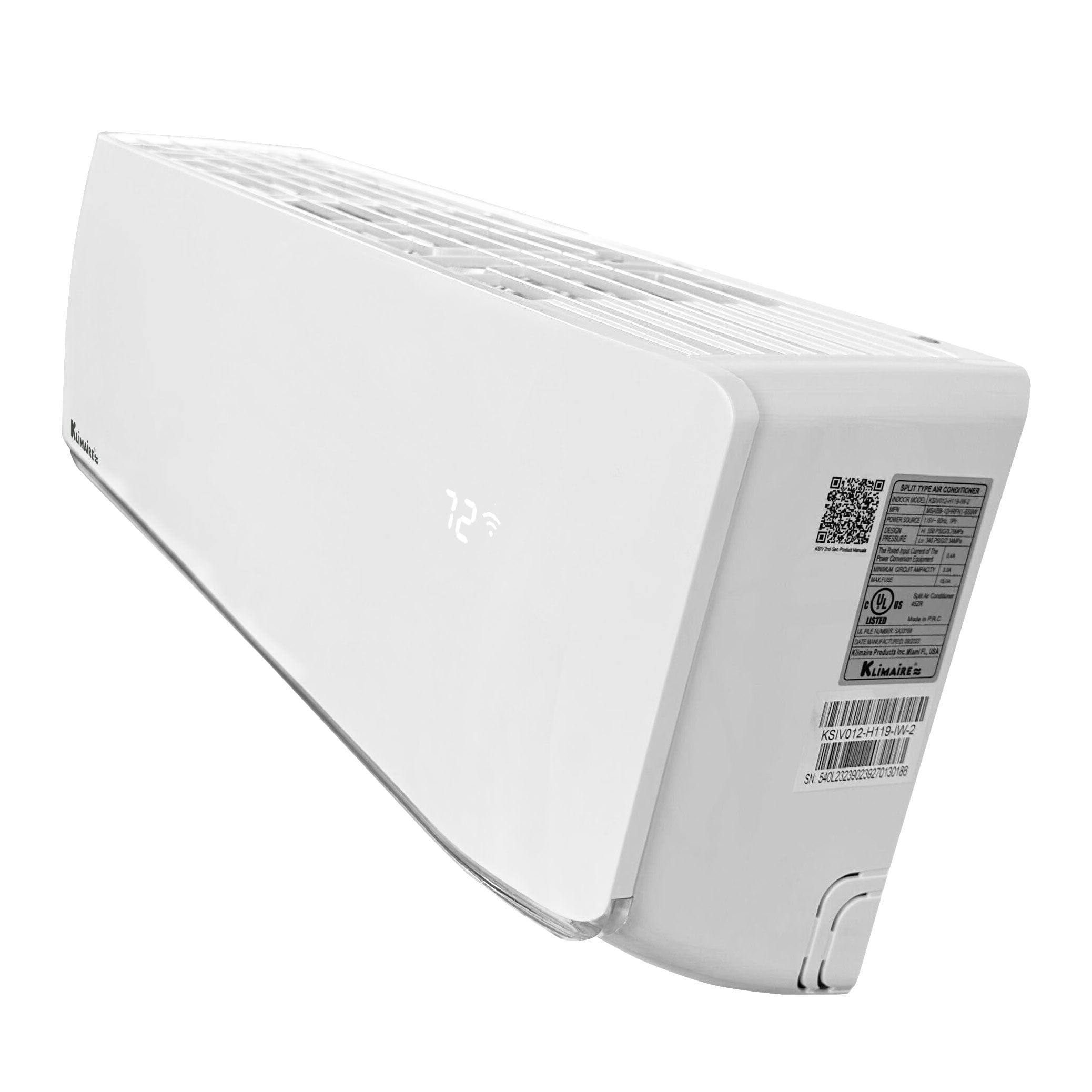

KSIE018-H220-IW-2 | Indoor Unit
Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.
Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.
The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D air flow technology distributes the air evenly throughout the room.
- 24 hour timer and memory function
- Turbo mode for fast heating & cooling
KUIR18-H2 | Indoor Unit
Extremely quiet operation and rugged construction make the 18,000 BTU KUIR18-H2 220-volt fan coil unit by Klimaire ideal for heavy traffic and public areas. It arrives pre-vacuumed and can be installed on the ceiling, low on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure
KMIR327-H217-2 | Outdoor Unit
Klimaire's new KMIR327-H217-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Improved Performance
- SEER2: 23.5
- EER2: 12.2
- HSPF2: 9.2
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KSIE018-H220-IW-2 | Indoor Unit
- KUIR18-H2 | Indoor Unit
- KMIR327-H217-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Find Certified Installers Near You
Technical Specifications
Below are the detailed specifications for this model.
| Specification |
Details |
| Certifications |
AHRI Performance Certified 210/240; ETL |
| Application |
Heat Pump / Heating & Cooling |
| Application Area Each Unit |
1000 + 1000 |
| Brand |
Klimaire |
| Eer2 |
12.2 |
| Eer |
12.0 |
| Electrical |
208-230 V; 1 Phase; 60 Hz |
| Hspf2 |
9.2 |
| Hspf Heating Seasonal Performance Factor |
10.2 |
| Manufacturer Limited Warranty |
5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units |
2 |
| Minisplit Fancoil Style |
Wall Mounted |
| Mounting Type |
Floor Mounted / Ceiling Suspended |
| Multi Zone Type |
2 |
| Must Ship Freight |
Yes |
| Number Of Zones |
2 Zones |
| Outdoor Model Number |
KMIR327-H217-2 |
| Refrigerant |
R-410A |
| Room Number |
2 Rooms |
| Seer2 |
23.5 |
| Seer2 Filter |
23+ |
| Seer |
22.5 |
| Shipping Time |
24 to 72 hours |
| Sqft-Btu-Room1 |
18K for 700-1,000 Sq. Ft. |
| Sqft-Btu-Room2 |
18K for 700-1,000 Sq. Ft. |
| Ss Type Two |
Ceiling Suspended |
| System Cooling Capacity Btu |
27,000 |
| System Heating Capacity Btu |
28,000 |
| System Nominal Capacity Btu |
27,000 |
| System Type |
Ductless MiniSplit Multizones |
| Technology |
Inverter |
| Type |
Ductless Multizone Systems |
| Voltage |
208/230 Volt |
| Zone 1 Model Number |
KSIE018-H220-IW-2 |
| Zone 1 Nominal Capacity |
18,000 BTU/h |
| Zone 1 Unit Type |
Wall Mounted |
| Zone 2 Model Number |
KUIR18-H2 |
| Zone 2 Nominal Capacity |
18,000 BTU/h |
Customer Reviews and Experiences
Frequently Asked Questions
We've compiled the most common questions about this heat pump system based on homeowner inquiries and installer feedback.
