3-Zone Klimaire 23.9 SEER2 Mylti Split Ceiling Cassette Floor-ceiling Air Conditioner Heat Pump System 12+18+24
KTIR12-H2 + KTIR18-H2 | Indoor Unit
Each recessed ceiling cassette unit disperses air in all directions for balanced comfort. Additionally, each unit can share capacity with an adjacent room via flexible duct. The unit’s off-white decorative panel blends easily with room and ceiling design. A built-in condensate pump provides flexible and easy installation. All that’s needed to accommodate this slim unit is a 24” x 24” space in a drop ceiling.
- Removable panel for easy cleaning
- Features fresh air intake design
- Can be connected to an alarm and long distance on/off control
KUIR24-H2 | Indoor Unit
Extremely quiet operation and rugged construction make the 24,000 BTU KUIR24-H2 220-volt fan coil unit by Klimaire ideal for heavy traffic and public areas. It arrives pre-vacuumed and can be installed on the ceiling, low on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure
KMIR545-H219-2 | Outdoor Unit
Klimaire's new KMIR545-H219-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
SEER2: 21.1
EER2: 11.0
HSPF2: 9.5
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KTIR12-H2 | Indoor Unit
- KTIR18-H2 | Indoor Unit
- KTIR12-DFP | Decorative Front Panel (x2)
- KUIR18-H2 | Indoor Unit
- KMIR545-H219-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates

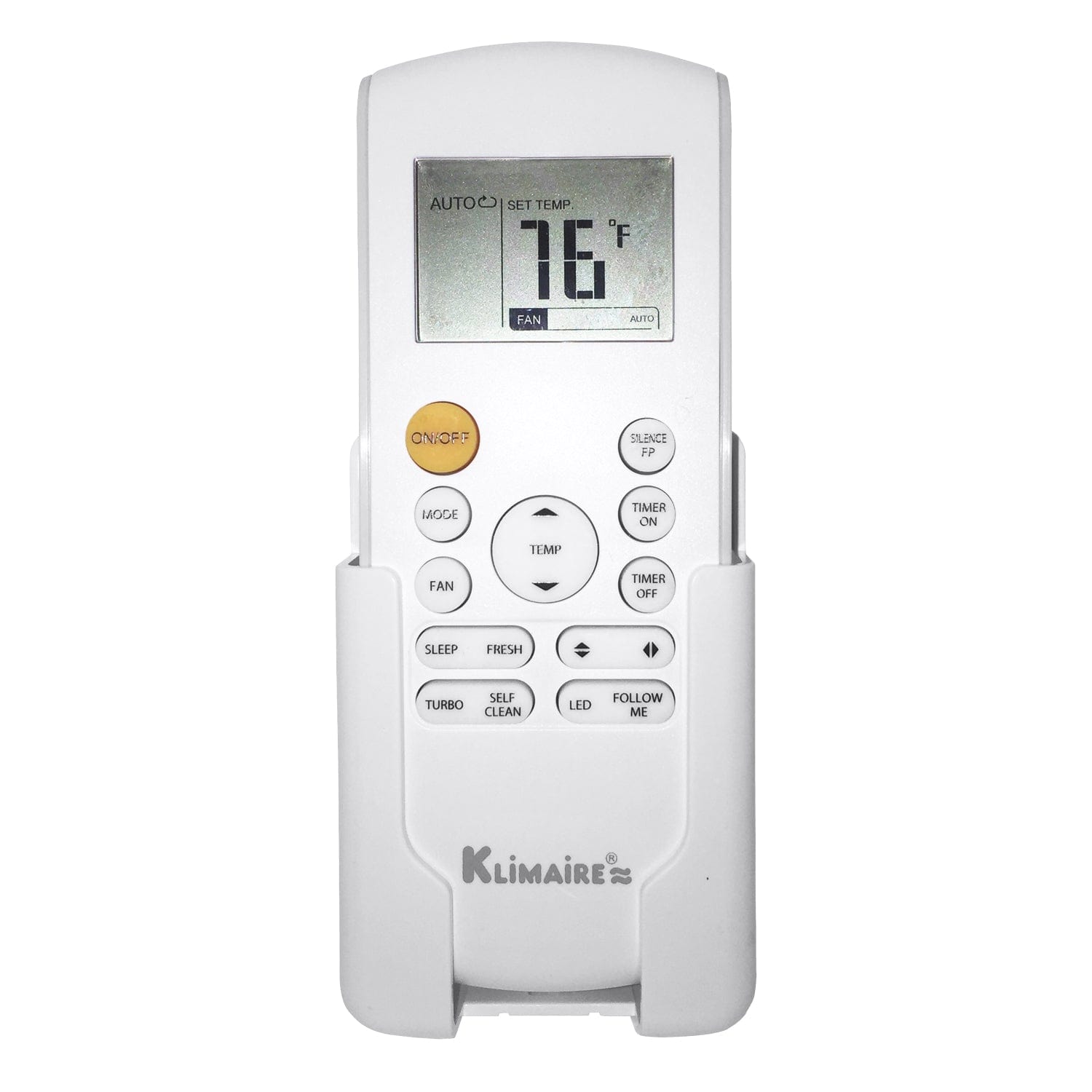

- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 1 year parts warranty
- 5 years compressor warranty
Find Certified Installers Near You
Technical Specifications
Below are the detailed specifications for this model.
| Specification |
Details |
| Zone 3 Model Number |
KUIR24-H2 |
| Zone 2 Unit Type |
Ceiling Cassette |
| Zone 2 Nominal Capacity |
18,000 BTU/h |
| Zone 2 Model Number |
KTIR18-H2 |
| Zone 1 Unit Type |
Ceiling Cassette |
| Zone 1 Nominal Capacity |
12,000 BTU/h |
| Zone 3 Unit Type |
Ceiling Suspended |
| Zone 3 Nominal Capacity |
24,000 BTU/h |
| Application |
Heat Pump / Heating & Cooling |
| Brand |
Klimaire |
| Certifications |
AHRI Performance Certified 210/240; ETL; ul |
| Electrical |
208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty |
5 Year Parts; 7 Year Compressor |
| Model Number |
KMIR545-H219-2 + KTIR12-H2 +KTIR12-DFP + KTIR18-H2 + KTIR12-DFP + KUIR24-H2 |
| Mounting Type |
Ceiling Cassette |
| Mounting Type |
Floor Mounted / Ceiling Suspended |
| Number Of Zones |
3 Zones |
| Outdoor Model Number |
KMIR545-H219-2 |
| Refrigerant |
R-410A |
| Shipping Cost |
445 |
| Shipping Time |
24 to 72 hours |
| Shop By Purifiers Air Type |
Electronic & HEPA |
| Zone 1 Model Number |
KTIR12-H2 |
| Sqft-Btu-Room1 |
12K for 400-550 Sq. Ft. |
| Sqft-Btu-Room1 |
18K for 700-1,000 Sq. Ft. |
| Sqft-Btu-Room1 |
24K for 1,000-1,500 Sq. Ft. |
| Sqft-Btu-Room2 |
12K for 400-550 Sq. Ft. |
| Sqft-Btu-Room2 |
18K for 700-1,000 Sq. Ft. |
| Sqft-Btu-Room2 |
24K for 1,000-1,500 Sq. Ft. |
| Sqft-Btu-Room3 |
12K for 400-550 Sq. Ft. |
| Sqft-Btu-Room3 |
18K for 700-1,000 Sq. Ft. |
| Sqft-Btu-Room3 |
24K for 1,000-1,500 Sq. Ft. |
| System Nominal Capacity Btu |
45,000 |
| Technology |
Inverter |
| Type |
Ductless Multizone Systems |
| Unit Type |
Standard |
| Voltage |
208/230 Volt |
