Klimaire DIY 12,000 BTU 19 SEER2 Ductless Mini Split Heat Pump Air Conditioner with 25 ft Pre-charged Installation Kit & Wi-Fi - 115V
Do it Easy, Do it for Less & Do it Quick
Do-It-Yourself Ductless Mini-Split Pre-Charged Air Conditioner - Heat Pump Series with our Convenient E-Z Kuick Connect TM Kit is a self-install system.
• NEW KLIMAIRE DIY - Do -It-Yourself Klimaire latest Series of ductless mini-split air conditioner - heat pump units with the quick connect refrigerant line kit and its easy plug-in electrical interconnecting wires to install without requiring the use of special tools and staying away from ac technician which leads to costly installation fees.
Klimaire Comfort-Wise Do it yourself mini-split unit is fully operational in all 4 seasons. System provides heating down to -13°F and cooling down to 5°F ambient temperature. It is backed with 7 years compressor and 5 years parts limited warranty.
• Smart Life App - Remotely Manage your Mini-Split Heat Pump Unit via Wi-Fi from anywhere and anytime.
• Self-Cleaning - built-in feature will prevent growth of harmful micro-organisms by cleaning the evaporator of the indoor unit where accumulation of dust and bacteria could be a major issue. This function keeps the unit fresh and clean for the next operation.
• Exceptional Air Quality (IAQ) - A set of multiple colored filters: tea polyphenols (green), anion (blue), vitamin C (yellow), photocatalyst (silver), active carbon (black), static free (gray) used with a washable, anti-mold, reusable plastic mesh filter to improve Indoor Air Quality (IAQ).
KIWQ12H1-4T | Indoor Unit
Select the mode and settings for your
COMFORT
-
COOLING Mode - To cool your room at the temperature of your preference.
-
HEATING Mode - To keep you warm and cozy during the cold days or in winter.
-
DRY Mode – Independent dehumidification to reduce the humidity of the air to make ambient of a room more comfortable.
-
AUTO Mode – In this mode the operation mode will be set automatically according to the room temperature.
-
I FEEL – This function enables the remote control to measure the temperature at its location and send signals to the indoor unit to optimize the temperature around its position. You keep the remote control close to you, it is as if the air conditioner were following you.
-
SLEEP mode – It can maintain the temperature at a lower setting at night during the sleeping hours.
-
Auto clean – This function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality.
-
3-D Air Flow Up-Down-Left-Right auto swing motion – moves the air with all directions .
-
AUTO-RESTART – After a power failure the system will automatically re-start in the same operating mode as before the outage when the power is restored.
-
LONG AIR DISCHARGE- Powerful and silent air flow thru larger fan diameter to reach every spot of the room.
CONVENIENCE
-
24h Timer – Allows the user to set the time when the AC will turn ON or OFF and the preferred settings.
-
TURBO Mode – With this function the AC will operate at the highest fan speed and speed to make the room comfortable quickly.
-
AUTO Mode – The operating mode will be set automatically according to the room temperature.
-
Independent Dehumidification – DRY Mode reduces the humidity of the air to make more comfortable the ambient of a room
-
Display ON/OFF – Switches ON/OFF the display on the panel.
-
EMERGENCY Button – Allows to manually operate the AC at the preset ambient conditions when the remote is missing.
PERFORMANCE
-
ANTI-COLD WIND – When the heating operation starts the fan coil will automatically run at the lowest speed of the preset level, preventing cold air at the beginning.
-
HIGH AMBIENT COOLING – Strong cooling capacity in high ambient temperatures of up to 122ºF
-
LOW AMBIENT COOLING – The unit can operate in cooling mode during the winter down to 5º F to cool an inner room.
-
LOW AMBIENT HEATING – Provides heating when the outside temperature is as low as-13º F.
-
SELF-TROUBLESHOOTING – Provides faster and accurate service diagnostics.

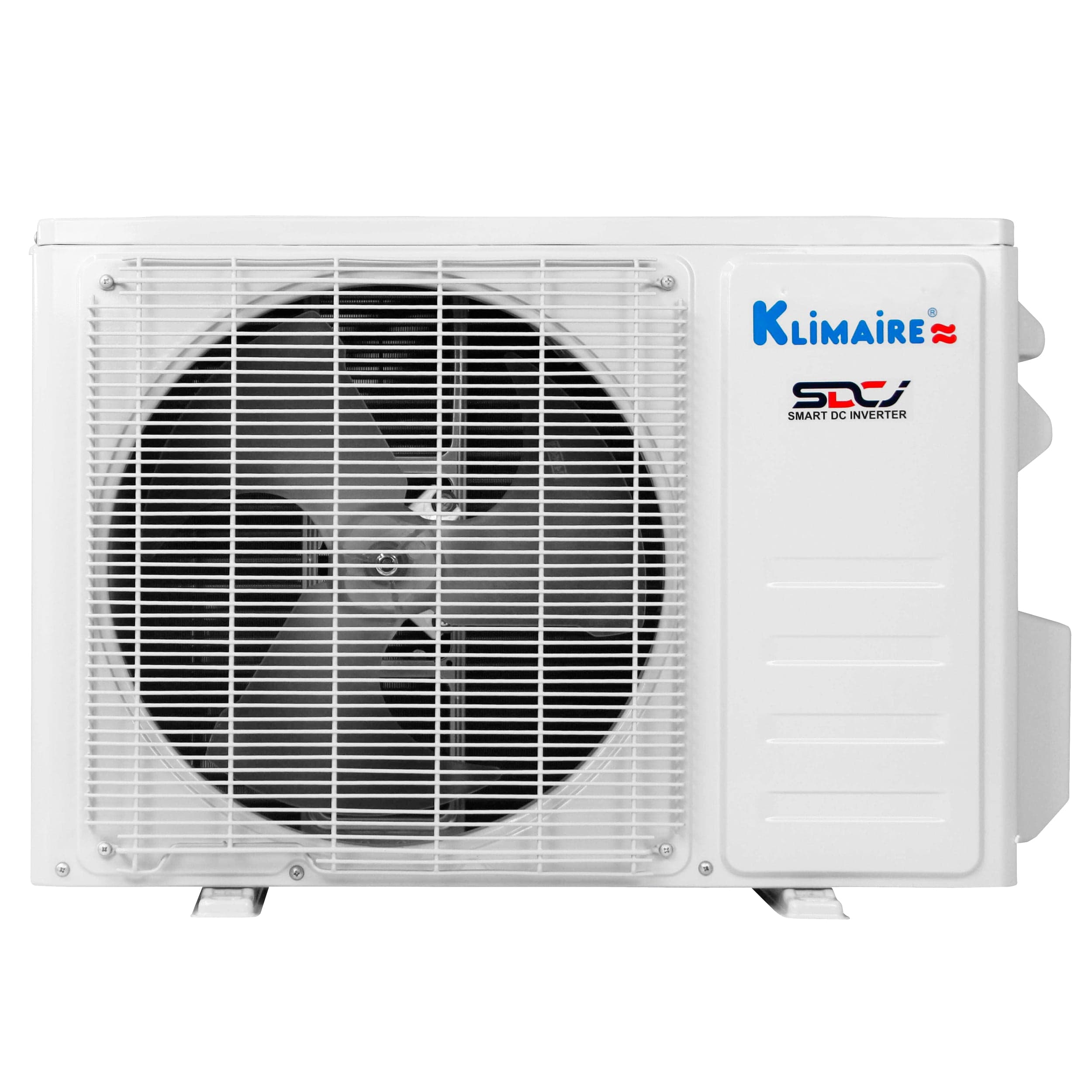

KOIQ12H1-4 | Outdoor Unit
RELIABILITY
-
REFRIGERANT LEAKAGE DETECTOR –When the outdoor unit detects a refrigerant leakage condition the indoor unit will sound an alarm.
-
GOLDISH FIN- Anticorrosion coating to protect the outdoor coil from corrosive elements to maintain higher heat transfer for a longer time.
ENERGY SAVING
-
AWAY HOME – (AH) will automatically start the heating mode when the room temperature is lower than 46º F
-
ECO Mode – In this mode the AC will automatically set the operation to save energy.
WHAT’S INCLUDED
Your Klimaire KWIQ/KOIQ Ductless Mini-Split Inverter Quick-Connect Air Conditioner Heat Pump System from Heat & Cool Comes With:
-
KIWQ12H1-4T | Indoor unit Box 1
-
KOIQ12H1-4 | Outdoor unit Box 2
- IKT1438Q25 | Quick-connect installation kit Box 2
- Remote control with wall bracket holder
- Installation manual
- User’s manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 5-year parts limited warranty
- 7-year compressor limited warranty
Find Certified Installers Near You
Technical Specifications
Below are the detailed specifications for this model.
| Specification |
Details |
| Wifi Capability |
Yes |
| Voltage |
115 Volt |
| Technology |
Inverter |
| System Weight |
94.7 lbs |
| Shipping Time |
24 to 72 hours |
| Seer2 Filter |
19+ |
| Seer2 |
19 |
| Room Number |
1 Room |
| Refrigerant |
R-410A |
| Purifiers Air Type |
Electronic & HEPA |
| Nominal Capacity Btu |
12,000 |
| Must Ship Freight |
Yes |
| Multi Zone Type |
1 |
| Mounting Type |
Wall Mounted |
| Model Number Outdoor |
KOIQ12H1-4 |
| Model Number Indoor |
KIWQ12H1-4T |
| Model Number |
KOIQ12H1-4 + KIWQ12H1-4T + IKT1438Q25 |
| Min Outdoor Temp Heating |
-13 |
| Manuf Limited Warranty F |
5 year parts 7 years compressor |
| Installation Kit Included New |
Yes |
| Hspf2 |
8.5 |
| Heating Capacity Btu |
12,000 |
| Electrical |
208-230 V; 1 Phase; 60 Hz |
| Ee2 |
10 |
| Coverage Area |
Up to 550 Sq. Ft. |
| Cop2 |
3.2 W/W |
| Cooling Capacity Btu |
12,000 |
| Colors |
White |
| Certifications |
ETL / HARI Performance Certified 210/240 |
| Application Area Sqft |
1,500 SqFt |
| Application |
Heat Pump / Heating & Cooling |
Customer Reviews and Experiences
Frequently Asked Questions
We've compiled the most common questions about this heat pump system based on homeowner inquiries and installer feedback.
